Product Description：

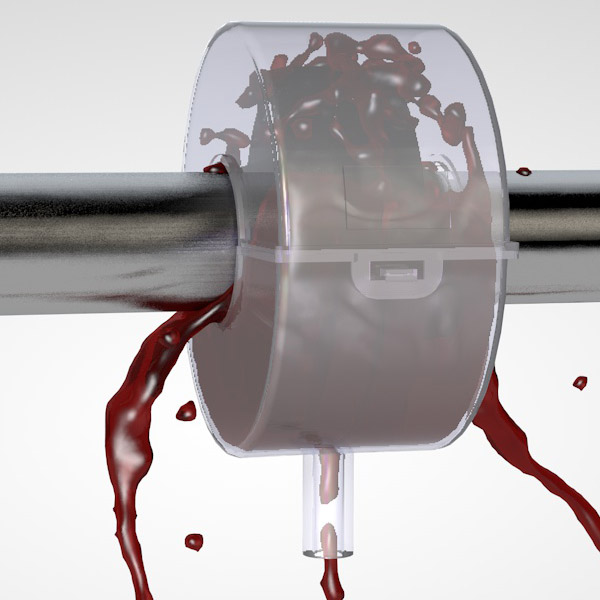

PP Clear Flange Guards with drain system

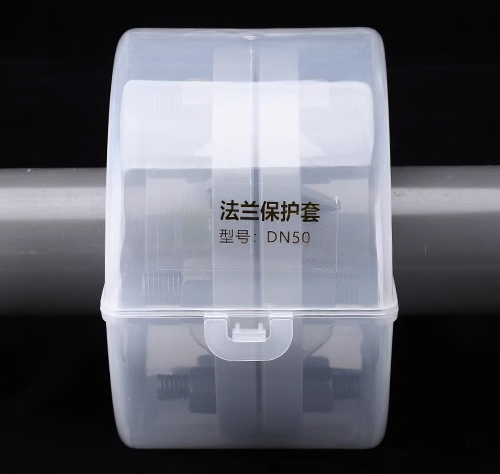

PP Clear Flange Guards

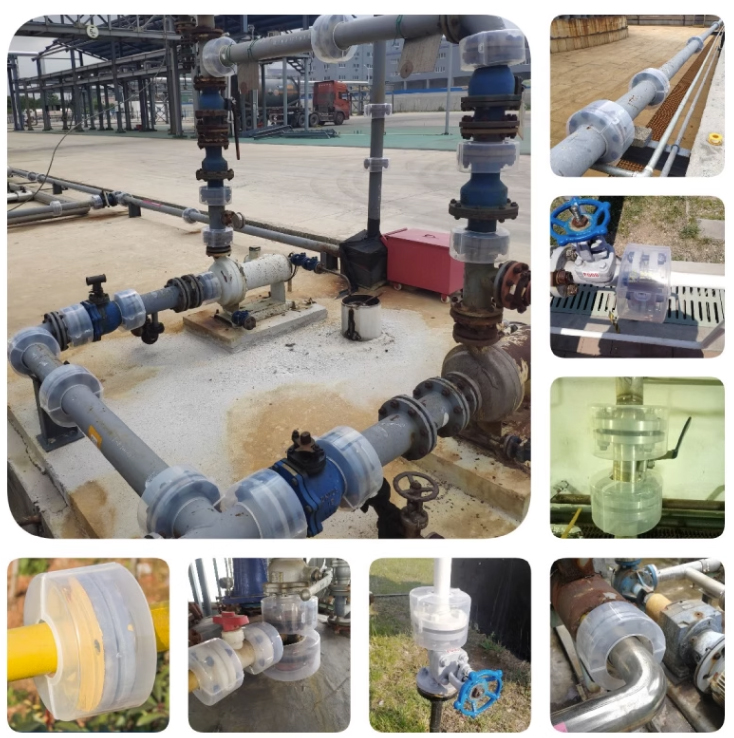

PP Clear Flange Guards, also known as polypropylene clear flange guards, are safety devices used to protect flanges and pipe connections from accidental leaks or sprays. These guards are typically made from a transparent or clear polypropylene material, allowing visibility of the flange and pipe connection while providing a barrier against chemical sprays or corrosive substances.
PP Clear Flange Guards are designed to fit around flanges and valve joints securely. They are usually equipped with adjustable straps or belts that can be tightened to ensure a proper fit. The transparent nature of the guards allows easy inspection of the flange without the need for removal, reducing the risk of accidental damage or leaks during regular maintenance or inspections.
These guards provide various benefits, including:
Chemical Resistance: PP Clear Flange Guards are resistant to a wide range of chemicals, making them suitable for use in industries where corrosive liquids or gases are handled.
Safety: By acting as a protective barrier, these flange guards prevent accidental sprays or leaks, reducing the risk of hazardous situations, injuries, or property damage.
Visibility: The clear design allows operators to visually inspect the flanges and pipe connections without removing the guards, saving time and effort during regular inspections.
Easy Installation: These guards are generally easy to install, requiring no special tools or expertise. Adjustable straps or belts ensure a secure fit around the flange.
Cost-Effective: Compared to traditional metal guards, PP Clear Flange Guards are often more cost-effective while still providing the necessary safety and protection.
It’s important to note that while PP Clear Flange Guards are effective in preventing direct sprays or leaks, they are not a substitute for proper maintenance and regular inspections of flanges and pipe connections. Proper installation and adherence to safety protocols are crucial for their effectiveness.
Overall, PP Clear Flange Guards are a reliable and cost-effective solution for protecting flanges and pipe connections, ensuring safety in industrial environments where hazardous chemicals or corrosive substances are present.
Made of PP Materical
| D | DN | Ø | D | d | h | Product |
| (mm) | (mm) | (mm) | (mm) | No | ||
| 20 | 15 | ½" | 120 | 23 | 90 | TST 217 |
| 25 | 20 | ¾" | 120 | 28 | 90 | TST 217 |
| 32 | 25 | 1" | 120 | 35 | 90 | TST 217 |
| 40 | 32 | 1"¼ | 175 | 42 | 90 | TST 217 |
| 50 | 40 | 1"½ | 175 | 50 | 90 | TST 217 |
| 63 | 50 | 2" | 175 | 63 | 90 | TST 217 |
| 75 | 65 | 2"½ | 205 | 77 | 112 | TST 217 |
| 90 | 80 | 3" | 205 | 93 | 114 | TST 217 |
| 110 | 100 | 4" | 226 | 135 | 138 | TST 217 |
| 125 | 125 | 5" | 259 | 165 | 138 | TST 217 |
| 140 | 125 | - | 259 | 165 | 138 | TST 217 |
| 160 | 150 | 6" | 288 | 195 | 170 | TST 217 |
| 180 | 200 | - | 345 | 255 | 174 | TST 217 |
| 200 | 200 | - | 345 | 255 | 174 | TST 217 |
| 225 | 200 | 8" | 345 | 255 | 174 | TST 217 |
| 250 | 250 | 10" | 408 | 310 | 195 | TST 217 |
| 315 | 300 | 12" | 456 | 350 | 217 | TST 217 |
">
